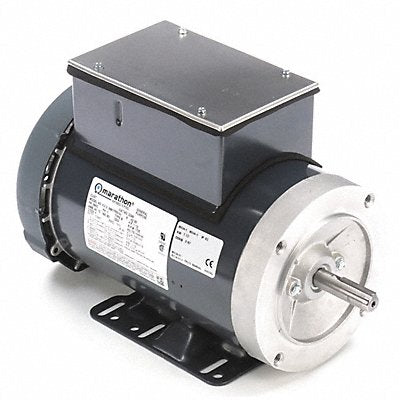

Motor 1 1/2 HP 1 725 rpm 115/208-230V
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 96F03A
EA
Description
Pressure Washer Motor Body Dia 7.4 in Bolt Circle Dia 5 7/8 in Conduit Box Location Exterior Conduit Box Position F3 Duty Cycle Continuous Frame 56HC Hz 60 Hz Full Load Amps 13.6/7.5-6.8 Height 9 in HP 1 1/2 Ins. Class B Length Less Shaft 11 15/16 in Max Ambient Temp 40 Degrees C Motor Application Pressure Washer Motor Bearings Ball Motor Design Capacitor-Start/Run Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Frame Material Steel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 43.4 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101602 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | Mexico |
