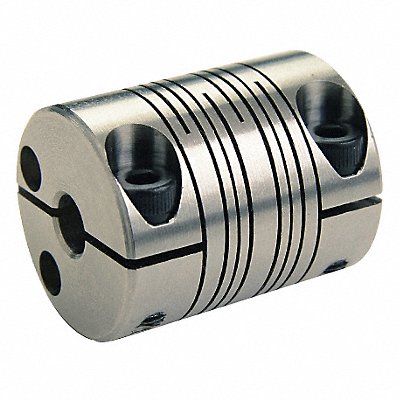

MotionControl Coupling Clamp 1/4 x1/4
Manufacturer: RULAND MANUFACTURING
Jahnda Part Number: 26H67A
EA
Description
Motion Control Coupling Angular Misalignment 3 Degrees Bore Diameter 1 1/4 in Bore Diameter 2 1/4 in Coupling Material Stainless Steel Coupling Outside Diameter 7/8 in Maximum Speed 6 000 RPM Maximum Torque 24 in-lb Axial Motion 0.005 in Overall Length 1 1/16 in Parallel Misalignment 0.008 in System of Measurement Inch Different Bore Sizes No Torsional Stiffness 9.35 in-lb/Deg Bore Type Round Shaft Locking Type Clamp On Number of Beams 4 Length Through Bore 2 0.5 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.11 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31163003 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311630 |
| Country of Origin (subject to change) | United States |
