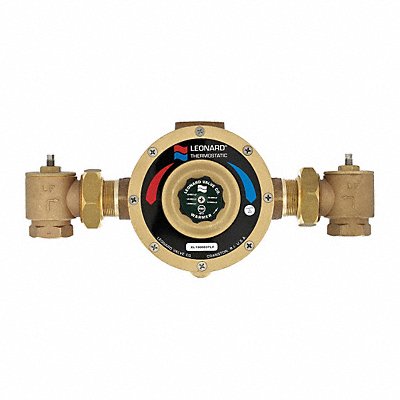

Mixing Valve Lead Free Bronze
Manufacturer: LEONARD VALVE
Jahnda Part Number: 83F35A
EA
Description
Mixing Valve Body Material Rough-Finish Lead Free Bronze Flow Rate 6 to 141 gpm Inlet Type NPT Outlet Type NPT Inlet Size 1 1/4 in Outlet Size 1 1/2 in Temp Range 95 Degrees to 135 Degrees F Max Pressure 125 psi Overall Height 6 in Overall Width 8 in Inlet Temperature (Cold) 40 Degrees to 85 Degrees F Inlet Temperature (Hot) 120 Degrees to 200 Degrees F For Use With Domestic Hot Water Applications Includes Check Stop Wall Support Standards ASSE 1017 Lead Free
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 25.9 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 40141609 |
| UNSPSC Segment | 40 |
| UNSPSC Family | 4014 |
| UNSPSC Class | 401416 |
| Country of Origin (subject to change) | United States |
