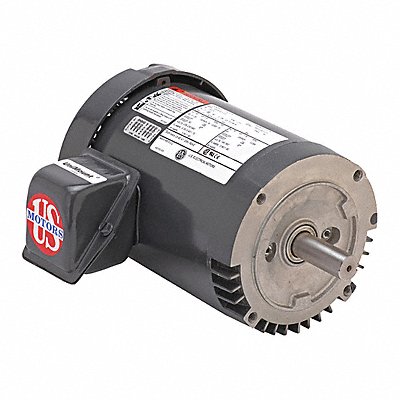

Metric Motor 230/460V AC Rear/Foot
Manufacturer: U.S. MOTORS
Jahnda Part Number: 07W31K
EA
Description
Metric Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 1 HP 0.8 kW kW Nameplate RPM 1 725 Frame 56 Voltage 208-230/460V AC 60 Hz Hz Three Phase Full Load Amps 3.3-3.2/1.5 A Rigid Base Motor Mounting Type Motor Thermal Protection None Ins. Class B Motor Service Factor 1.15 Motor Frame Material Steel Max Ambient Temp 40 Degrees C CCW Motor Shaft Rotation Nominal Efficiency 85.5 Percent 1 701-1 800 CE
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 36.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
