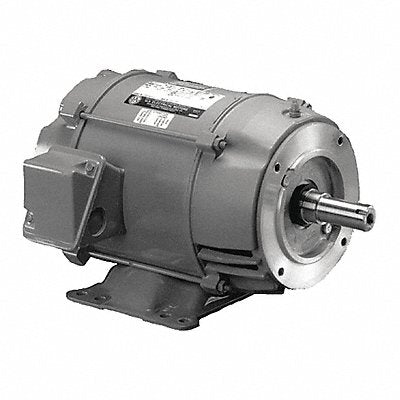

Metric Motor 208-230/460V AC Rear/Foot
Manufacturer: U.S. MOTORS
Jahnda Part Number: 11W31K
EA
Description
Metric Motor 3-Phase Open Dripproof Motor Enclosure Design 30 HP 22.4 kW kW Nameplate RPM 1 780 Frame 286 Voltage 208-230/460V AC 60/50 Hz Hz Three Phase Full Load Amps 77.0-69.0/34.0 A Rear/Foot Motor Mounting Type Ins. Class F Motor Service Factor 1.15 Motor Frame Material Cast Iron Max Ambient Temp 40 Degrees C CCW Motor Shaft Rotation Nominal Efficiency 94.1 Percent Continuous Duty 1 701-1 800 cRUus CSA Certified
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 250.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
