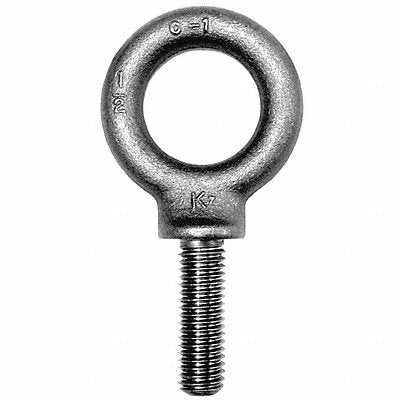

Machinery Eye Bolt Shank D 14 mm
Manufacturer: KEN FORGING
Jahnda Part Number: 86Z24B
EA
Description
Machinery Eye Bolt System of Measurement Metric Eyebolt Type Lift with Shoulder Material Steel Finish Plain Thread Size M14-2.00 Thread Length 41.1 mm Shank Dia 14 mm Shank Length 41.1 mm Shoulder Dia 23.88 to 25.40mm Shoulder Length 6.35 mm Eye Inside Dia 33 mm Eye Outside Dia 58.0 mm Overall Length 115.9 mm Length from Ream Center - Working Load Limit 1 600 lb Includes -
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.51 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31161610 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311616 |
| Country of Origin (subject to change) | United States |
