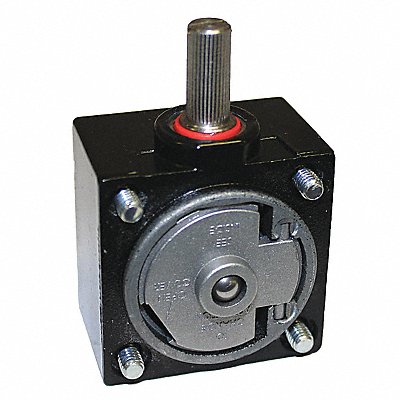

Lmt Swtch Head Rotary Side -40 to 212F
Manufacturer: HONEYWELL MICRO SWITCH
Jahnda Part Number: 25A92A
EA
Description
Limit Switch Head Actuator Style Rotary Actuator Location Side Contact Form Not Applicable Amps Not Applicable Voltage Rating 600V AC/250V DC Travel Differential Travel 5 Degrees max Overtravel 60 Degrees min Pretravel 15 Degrees max Movement CW and CCW Operating Force 4.0 in-lb Operating Temp -40 Degrees to 212 Degrees F NEMA Rating 1 3 4 4X 6 6P IP Rating Not Rated Standards CSA UL For Use With HDLS LSA Low Temp Switches
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.55 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 39121509 |
| UNSPSC Segment | 39 |
| UNSPSC Family | 3912 |
| UNSPSC Class | 391215 |
| Country of Origin (subject to change) | United States |
