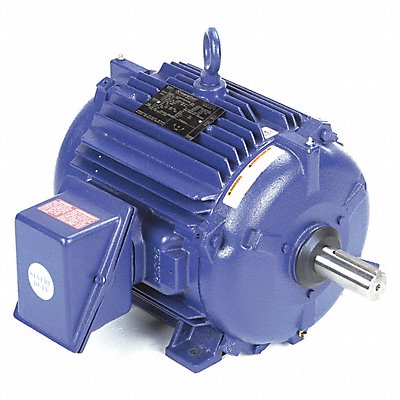

Kiln Motor 7 1/2 HP 1170 rpm 254T 460V
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 59A13A
EA
Description
Kiln Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 1 170 No of Speeds 1 Voltage 460V AC Full Load Amps 9.8 254T Frame Usable @ 208V No Usable @ 200V No 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class H Max Ambient Temp 90 Degrees C Duty Cycle Continuous Motor Shaft Rotation CCW CW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Lead Length 96 in Inverter Rated Yes
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 318.0 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101612 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | United States |
