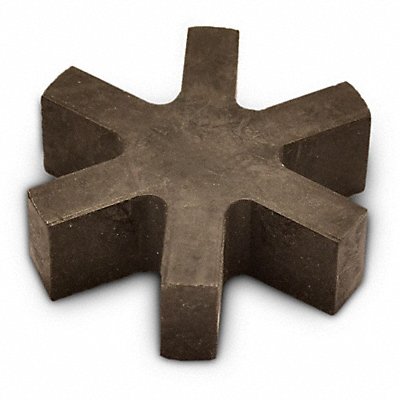

Jaw Coupling Insert SyntheticRubber FC38
Manufacturer: BOSTON GEAR
Jahnda Part Number: 62L26A
EA
Description
Oil Resistant Spider Insert Coupling Size FC38 Outside Diameter 3 3/4 in System of Measurement Inch Maximum Speed 1 750 RPM Horsepower @ 100 RPM 2.5 hp Spider Material Rubber Maximum Torque 1 600 in-lb Parallel Misalignment 0.002 in Angular Misalignment 1.5 Degrees Color Black Compatible Hub Manufacturer Part Number FC38 Fail Safe Yes For Misalignment Type Angular Parallel Horsepower @ RPM 29.2 hp @ 1150 RPM Maximum Operating Temperature 200 Degrees F
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.2 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31163003 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311630 |
| Country of Origin (subject to change) | United States |
