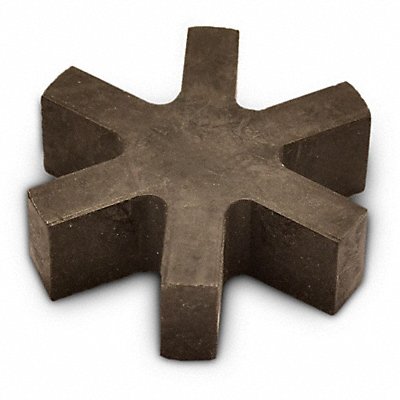

Jaw Coupling Insert SyntheticRubber FC15
Manufacturer: BOSTON GEAR
Jahnda Part Number: 50L26A
EA
Description
Oil Resistant Spider Insert Coupling Size FC15 Outside Diameter 1 1/2 in System of Measurement Inch Maximum Speed 3 450 RPM Horsepower @ 100 RPM 0.2 hp Spider Material Rubber Maximum Torque 125 in-lb Parallel Misalignment 0.002 in Angular Misalignment 1.5 Degrees Color Black Compatible Hub Manufacturer Part Number FC15 Fail Safe Yes For Misalignment Type Angular Parallel Horsepower @ RPM 2.3 hp @ 1150 RPM Maximum Operating Temperature 200 Degrees F
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.01 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31163003 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311630 |
| Country of Origin (subject to change) | United States |
