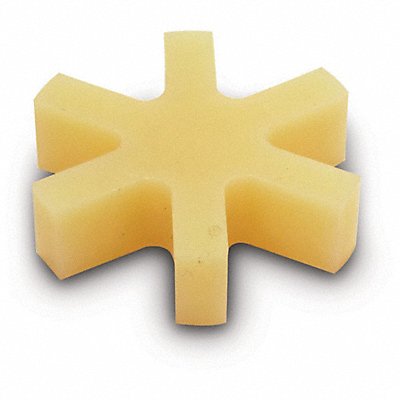

Jaw Coupling Insert Polyurethane FC20
Manufacturer: BOSTON GEAR
Jahnda Part Number: 54L26A
EA
Description
Polyurethane Spider Insert Coupling Size FC20 Outside Diameter 2 in System of Measurement Inch Maximum Speed 3 450 RPM Horsepower @ 100 RPM 0.7 hp Spider Material Polyurethane Maximum Torque 470 in-lb Parallel Misalignment 0.002 in Angular Misalignment 1 Degrees Color Tan Compatible Hub Manufacturer Part Number FC20 Fail Safe Yes For Misalignment Type Angular Parallel Horsepower @ RPM 7.5 hp @ 1150 RPM Maximum Operating Temperature 200 Degrees F
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.04 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31163003 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311630 |
| Country of Origin (subject to change) | Mexico |
