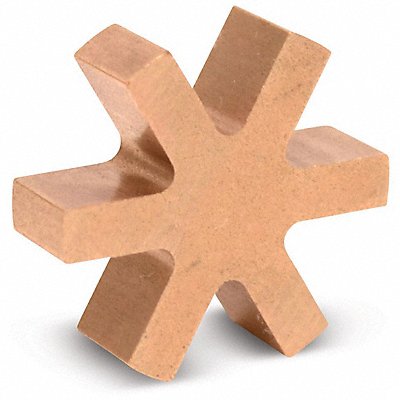

Jaw Coupling Insert Bronze FC20
Manufacturer: BOSTON GEAR
Jahnda Part Number: 52L26A
EA
Description
Oil Impregnated Spider Insert Coupling Size FC20 Outside Diameter 2 in System of Measurement Inch Maximum Speed 1 150 RPM Horsepower @ 100 RPM 1.6 hp Spider Material Bost-Bronz Maximum Torque 1 000 in-lb Parallel Misalignment 0.001 in Angular Misalignment 0.5 Degrees Color Bronze Compatible Hub Manufacturer Part Number FC20 Fail Safe Yes For Misalignment Type Angular Parallel Horsepower @ RPM 18.2 hp @ 1150 RPM Maximum Operating Temperature 250 Degrees F
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.2 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31163003 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311630 |
| Country of Origin (subject to change) | United States |
