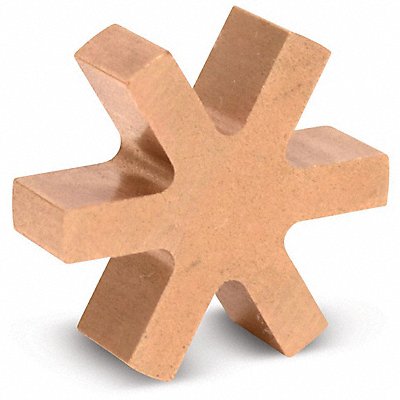

Jaw Coupling Insert Bronze FC15
Manufacturer: BOSTON GEAR
Jahnda Part Number: 49L26A
EA
Description
Oil Impregnated Spider Insert Coupling Size FC15 Outside Diameter 1 1/4 in System of Measurement Inch Maximum Speed 1 750 RPM Horsepower @ 100 RPM 0.79 hp Spider Material Bost-Bronz Maximum Torque 500 in-lb Parallel Misalignment 0.001 in Angular Misalignment 0.5 Degrees Color Bronze Compatible Hub Manufacturer Part Number FC15 Fail Safe Yes For Misalignment Type Angular Parallel Horsepower @ RPM 9.1 hp @ 1150 RPM Maximum Operating Temperature 250 Degrees F
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.05 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31163003 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311630 |
| Country of Origin (subject to change) | United States |
