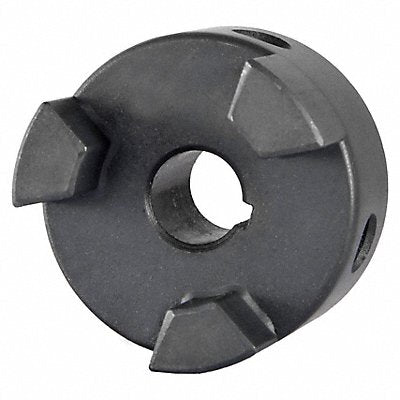

Jaw Coupling Hub O.D. 13/4 C.L. 21/8 817J54
Manufacturer: DAYTON
Jahnda Part Number: 02F38O
EA
Description
Jaw Coupling Hub Coupling Size L075 Outside Diameter 1 3/4 in Coupling Overall Length 2 1/8 in System of Measurement Inch Hub Material Sintered Iron Maximum Speed 11 000 RPM Horsepower @ 100 RPM 0.14 hp (Buna-N Spider) 0.21 hp (Urethane Spider) 0.36 hp (Hytrel Spider) Keyway Depth 1/16 in Keyway Width 1/8 in Bore Diameter 7/16 in Shaft Locking Type Set Screw Bore Type Round Bore with Keyway Jaw Profile Straight Application Close Coupling L-Type
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.47 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
