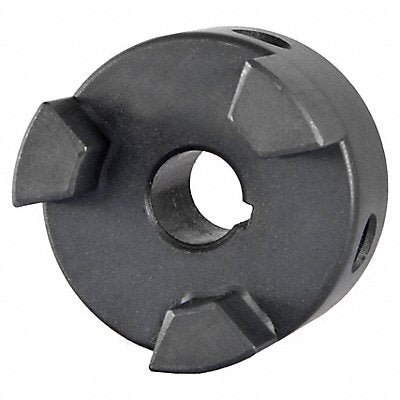

Jaw Coupling Hub 250 F 9 000 RPM Steel 817J56
Manufacturer: DAYTON
Jahnda Part Number: 04F38O
EA
Description
Jaw Coupling Hub Coupling Size L090 Outside Diameter 2 7/64 in Coupling Overall Length 2 1/8 in System of Measurement Inch Hub Material Sintered Iron Maximum Speed 9 000 RPM Horsepower @ 100 RPM 0.23 hp (Buna-N Spider) 0.35 hp (Urethane Spider) 0.64 hp (Hytrel Spider) Keyway Depth 1/16 in Keyway Width 1/8 in Bore Diameter 1/2 in Shaft Locking Type Set Screw Bore Type Round Bore with Keyway Jaw Profile Straight Application Close Coupling L-Type
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.68 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
