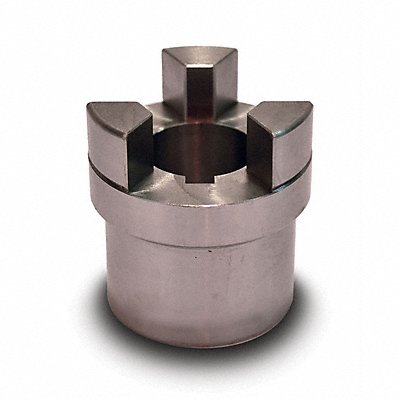

Jaw Coupling Hub 1 SS
Manufacturer: BOSTON GEAR
Jahnda Part Number: 86A90O
EA
Description
Jaw Coupling Hub Coupling Size FC20 Outside Diameter 2 in Coupling Overall Length 3 11/16 in System of Measurement Inch Hub Material Stainless Steel Maximum Speed 3 450 RPM Keyway Depth 1/8 in Keyway Width 1/4 in Bore Diameter 1 in Shaft Locking Type Set Screw Bore Type Round Bore with Keyway Jaw Profile Straight Screw Thread Size 3/8 In.-16 Bore Tolerance +0.001/-0.000 in Shaft Tolerance +0.000/-0.001 in Hub Diameter 1 3/4 in Hub Material Grade 316
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.19 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31163003 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311630 |
| Country of Origin (subject to change) | China |
