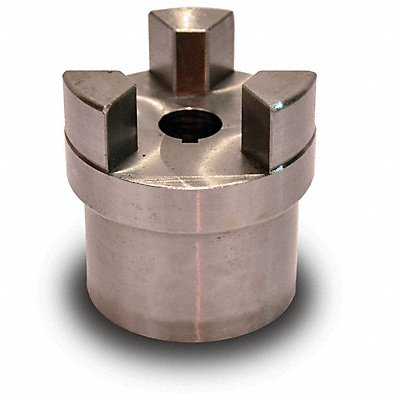

Jaw Coupling Hub 1/2 Steel
Manufacturer: BOSTON GEAR
Jahnda Part Number: 94V53K
EA
Description
Shaft Coupler Body Coupling Size FC20 Outside Diameter 2 in Coupling Overall Length 3 11/16 in System of Measurement Inch Hub Material Carbon Steel Maximum Speed 3 450 RPM Horsepower @ 100 RPM 1.2 hp Keyway Depth 1/16 in Keyway Width 1/8 in Bore Diameter 1/2 in Shaft Locking Type Set Screw Bore Type Round Bore with Keyway Jaw Profile Straight Bore Tolerance +0.001/-0.000 in Hub Diameter 1 3/4 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.1 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31163003 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311630 |
| Country of Origin (subject to change) | China |
