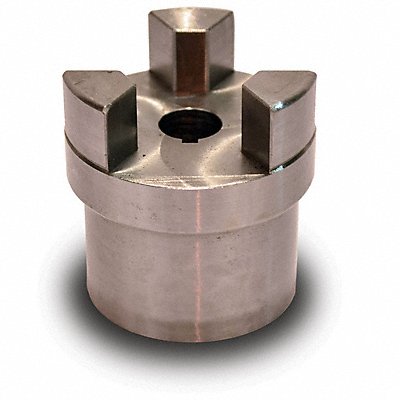

Jaw Coupling Hub 1-1/2 Steel
Manufacturer: BOSTON GEAR
Jahnda Part Number: 11W53K
EA
Description
Shaft Coupler Body Coupling Size FC30 Outside Diameter 3 in Coupling Overall Length 5 15/32 in System of Measurement Inch Hub Material Carbon Steel Maximum Speed 3 450 RPM Keyway Depth 3/16 in Keyway Width 3/8 in Bore Diameter 1 1/2 in Shaft Locking Type Set Screw Bore Type Round Bore with Keyway Jaw Profile Straight Bore Tolerance +0.001/-0.000 in Hub Diameter 2 3/4 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 3.44 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31163003 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311630 |
| Country of Origin (subject to change) | China |
