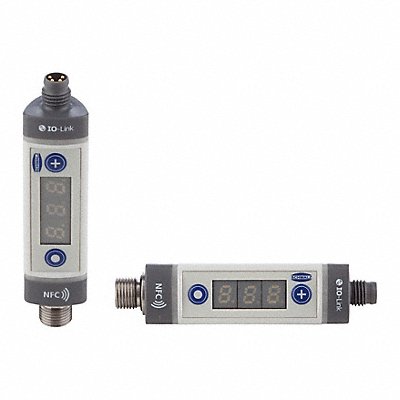

IO Link Vacuum Sensor 10.06.02.00577
Manufacturer: SCHMALZ
Jahnda Part Number: 98H28O
EA
Description
IO-Link Vacuum Sensor Body Material Fiberglass-Reinforced Plastic Electrical Connection Type 4-Pole M8 Male Includes Display Display Included Maximum Operating Temperature 50 Degrees C Maximum Vacuum Pressure 0 bar Minimum Operating Temperature 0 Degrees C Minimum Vacuum Pressure -1 bar Overall Height 77.5 mm Overall Width 20 mm Port Gender Female Port Size 5 mm Port Type Metric Series VSi Standards 2011/65/EU 2014/30/EU EN 61000-6-1 EN 61000-6-4+A1 EN IEC 63000 EN ISO 12100
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.1 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 39121548 |
| UNSPSC Segment | 39 |
| UNSPSC Family | 12 |
| UNSPSC Class | 15 |
| Country of Origin (subject to change) | Germany |
