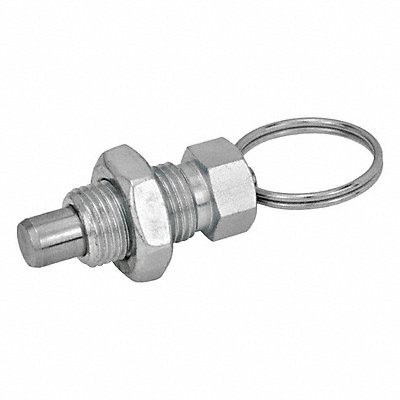

Indexing Plungers with Pull Ring 717-8-M16X1.5-AK-ST
Manufacturer: JW WINCO
Jahnda Part Number: 69L78O
EA
Description
Indexing Plungers with Pull Ring Thread Size M16x1.5 Thread Length 24 mm Nose Shape Ball Plunger Material Stainless Steel Plunger Projection 8 mm Mounting Type Not Applicable Body Length 33 mm Final Nose Force 22 N Initial Nose Force 6 N Overall Length 71 mm Plunger Width 8 mm Thread Pitch 1.5 mm Handle Type Pull Ring Body Finish Zinc-Plated Body Material Steel Handle Material Stainless Steel Standards DIN 439 B/ISO 4035/ISO 8675 RoHS Thread Partially Threaded
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.15 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Germany |
