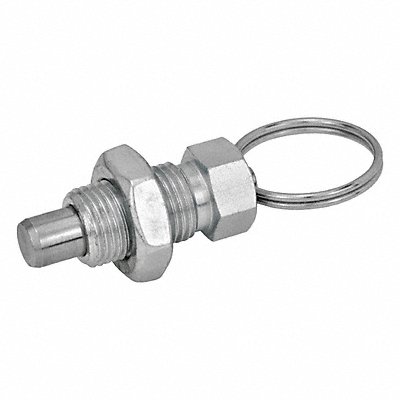

Indexing Plungers with Pull Ring 717-4-M6-AK-ST
Manufacturer: JW WINCO
Jahnda Part Number: 60L78O
EA
Description
Indexing Plungers with Pull Ring Thread Size M6 Thread Length 12 mm Nose Shape Ball Plunger Material Stainless Steel Plunger Projection 4 mm Mounting Type Not Applicable Body Length 16.5 mm Final Nose Force 12 N Initial Nose Force 3 N Overall Length 33.5 mm Plunger Width 4 mm Handle Type Pull Ring Body Finish Zinc-Plated Body Material Steel Handle Material Stainless Steel Standards DIN 439 B/ISO 4035/ISO 8675 RoHS Thread Partially Threaded
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.01 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Germany |
