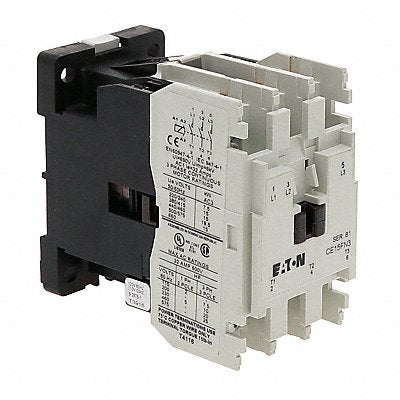

IECMagContactor NonReversing 110-120VAC
Manufacturer: EATON
Jahnda Part Number: 78Q30K
EA
Description
IEC Magnetic Contactor Auxiliary Contact Form Auxiliary Contacts Not Included NEMA Enclosure Rating No Enclosure NEMA Size Not Applicable Coil Voltage 110-120V AC Number of Poles 3 Full Load Current - Inductive 32 A Full Load Current - Resistive 22 A Reversing Capability Non-Reversing Overall Height 2.96 in Overall Width 1.8 in Terminal Connection Type Screw Terminals Mounting Style Plate Series Freedom Contactor Style IEC Horsepower @ Three Phase - 240V AC 10 hp
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.3 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 39121529 |
| UNSPSC Segment | 39 |
| UNSPSC Family | 3912 |
| UNSPSC Class | 391215 |
| Country of Origin (subject to change) | Dominican Republic |
