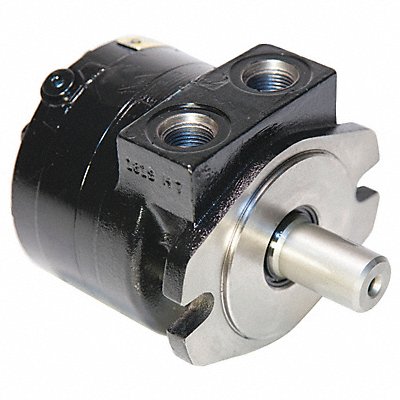

Hydraulic Motor 8.8 cu in./rev.
Manufacturer: PARKER
Jahnda Part Number: 74Y17A
EA
Description
Hydraulic Motor 8.8 cu in/rev Displacement Continuous Torque 3 080 in-lb Flange Mount SAE A 2-Bolt 7/8 In.-14 SAE Port Size Shaft Dia 1 in Min Oil Viscosity 50 SUS Max RPM 787 RPM Pressure Rating 2500 psi Shaft Type Keyed Max Oil Temp 180 Degrees F Shaft Length 1.79 in Length 4.98 in Height 4.61 in Mounting Plate Width 5.13 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 19.25 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101613 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | United States |
