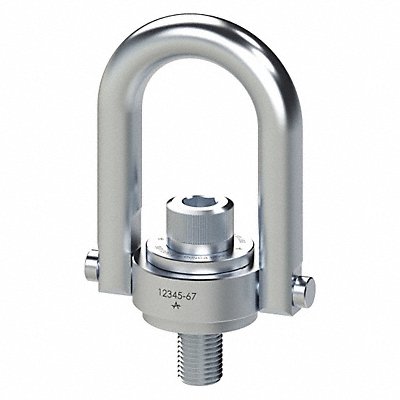

Hoist Ring Bolt-On 64-6in 1423.7 ft.-lb.
Manufacturer: ADB HOIST RINGS
Jahnda Part Number: 77C92B
EA
Description
Hoist Ring Mounting Style Bolt-On Series SEHRSSM Pivot 180 Degrees Swivel Angle 360 Degrees Working Load Limit 24 200 lb Bail Dia 1 in Thread Size M64 x 6.0 Dimension a 76.2 mm Dimension B 266.7 mm Dimension C 104 mm Dimension d 57.2 mm Dimension E 102 mm Dimension F 428.5 mm Installation Torque 1 423.7 ft-lb Standards ASME B30.26
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 87.68 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 24101602 |
| UNSPSC Segment | 24 |
| UNSPSC Family | 2410 |
| UNSPSC Class | 241016 |
| Country of Origin (subject to change) | United States |
