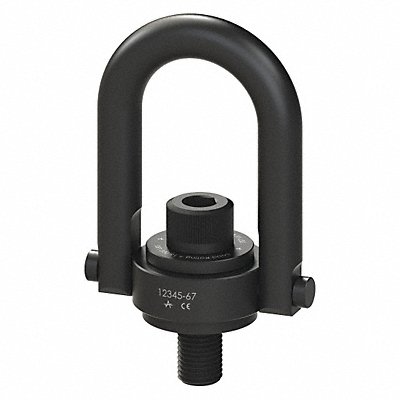

Hoist Ring 30-3-1/2in 637.2 ft.-lb SEHRM
Manufacturer: ADB HOIST RINGS
Jahnda Part Number: 76C92B
EA
Description
Hoist Ring Mounting Style Bolt-On Series SEHRM Pivot 180 Degrees Swivel Angle 360 Degrees Working Load Limit 15 400 lb Bail Dia 1 in Thread Size M30 x 3.5 Dimension a 44.5 mm Dimension B 152.4 mm Dimension C 53.6 mm Dimension d 31.8 mm Dimension E 66 mm Dimension F 221.7 mm Installation Torque 637.2 ft-lb Standards ASME B30.26
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 12.96 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 24101602 |
| UNSPSC Segment | 24 |
| UNSPSC Family | 2410 |
| UNSPSC Class | 241016 |
| Country of Origin (subject to change) | United States |
