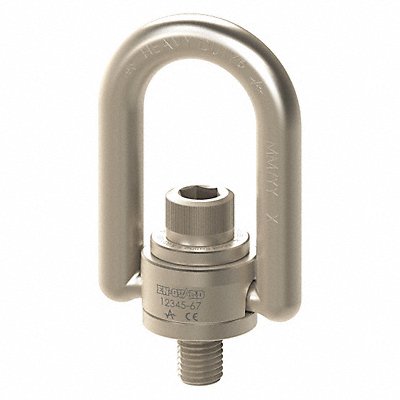

Hoist Ring 12-1-3/4in 37 ft.-lb ENHDHRM
Manufacturer: ADB HOIST RINGS
Jahnda Part Number: 14D92B
EA
Description
Hoist Ring Mounting Style Bolt-On Series ENHDHRM Pivot 180 Degrees Swivel Angle 360 Degrees Working Load Limit 2 300 lb Bail Dia 1 in Thread Size M12 x 1.75 Dimension a 25.4 mm Dimension B 88.9 mm Dimension C 38.1 mm Dimension d 19.1 mm Dimension E 25 mm Dimension F 134.9 mm Installation Torque 37 ft-lb Standards ASME B30.26
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 2.3 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 24101602 |
| UNSPSC Segment | 24 |
| UNSPSC Family | 2410 |
| UNSPSC Class | 241016 |
| Country of Origin (subject to change) | United States |
