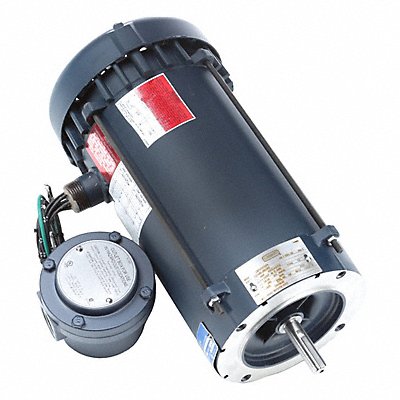

Hazardous Location Motor T Stat 119430.00
Manufacturer: LESSON
Jahnda Part Number: 84R48O
EA
Description
Hazardous Location Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 1725 No of Speeds 1 Voltage 230/460V AC Full Load Amps 2.4 A 56C Frame Usable @ 208V No Usable @ 200V No Hz 50 Hz 60 Hz Max Ambient Temp 40 Degrees C Motor Service Factor 1 Motor Thermal Protection T-Stat Ins. Class B Hazardous Location Class 1 C D / 2 F G Temp Code T3B Motor Enclosure Design Totally Enclosed Fan-Cooled Duty Cycle Continuous NEMA Design B Motor Shaft Rotation CW/CCW
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 65.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
