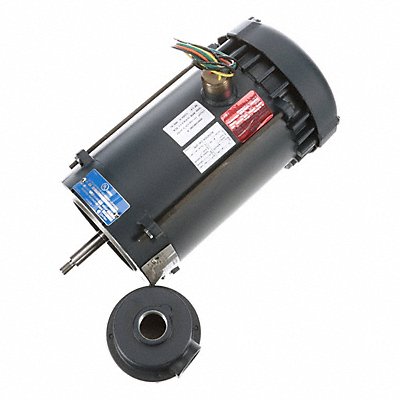

Hazardous Location Motor Auto 116183.00
Manufacturer: LESSON
Jahnda Part Number: 66R48O
EA
Description
Hazardous Location Motor Single Phase Motor Design Capacitor-Start 1 1/2 HP Nameplate RPM 3450 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 7.7 A 56J Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Hz Max Ambient Temp 40 Degrees C Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Hazardous Location Class 1 C D / 2 F G Temp Code T3B Motor Enclosure Design Totally Enclosed Fan-Cooled Duty Cycle Continuous NEMA Design L Motor Shaft Rotation CW
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 40.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
