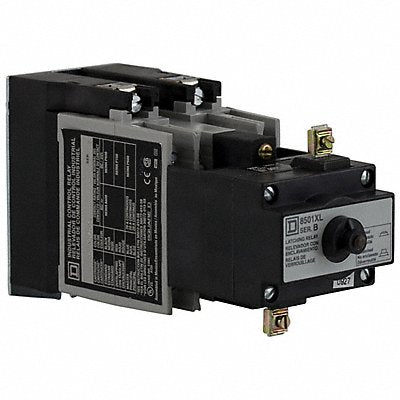

H2727 NEMAControlRelay 4NO 110/120VAC 10A
Manufacturer: SQUARE D
Jahnda Part Number: 38O76A
EA
Description
H2727 NEMA Control Relay Current Rating 10 A Contact Form 4NO Contact Rating (DC) 5 A @ 125/250V Coil Voltage 110/120V AC Contact Rating (AC) 10 A @ 600V Relay Style NEMA Electrical Connection Screw Clamp Mounting Style Surface Power Consumption 23 VA Compatible with Series 8501 Type X Latching Control Relays Maximum Operating Temperature 160 Degrees F Frequency 50/60 Hz Body Depth 6.54 in Body Height 3.5 in Body Width 2.23 in Contact Material Silver Cadmium Oxide
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 2.99 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 39121514 |
| UNSPSC Segment | 39 |
| UNSPSC Family | 3912 |
| UNSPSC Class | 391215 |
| Country of Origin (subject to change) | Mexico |
