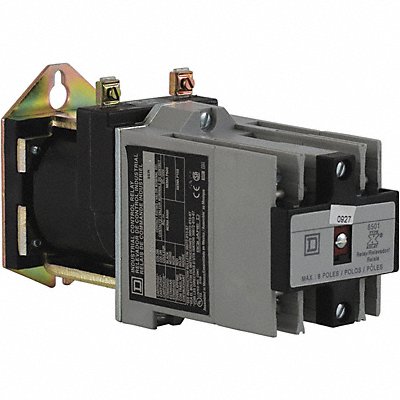

H2719 NEMA Control Relay 8NO 24V DC 10 A

H2719 NEMA Control Relay Current Rating 10 A Contact Form 8NO Contact Rating (DC) 0.2 A @ 301-600V 0.55 A @ 250V 0.8 A @ 250V 1.1 A @ 125V 4 A @ 125V Coil Voltage 24V DC Contact Rating (AC) 10 A @ 600V Relay Style NEMA Electrical Connection Screw Clamp Mounting Style Surface Power Consumption 18 W Compatible with Series 8501 Type X Latching Control Relays Maximum Operating Temperature 160 Degrees F Body Depth 6.37 in Body Height 3.56 in Body Width 2.23 in
