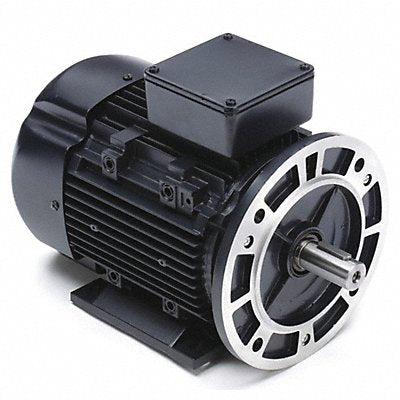

GP Motor 3 HP 3 500 RPM 230/460V AC 90L
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 73Z61K
EA
Description
General Purpose Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 3 500 No of Speeds 1 Voltage 230/460V AC Full Load Amps 7.2/3.6 A 90L Frame Usable @ 208V No Usable @ 200V No Hz 60/50 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins. Class F Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Face/Base Motor Mounting Position Horizontal
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 42.1 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101602 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | China |
