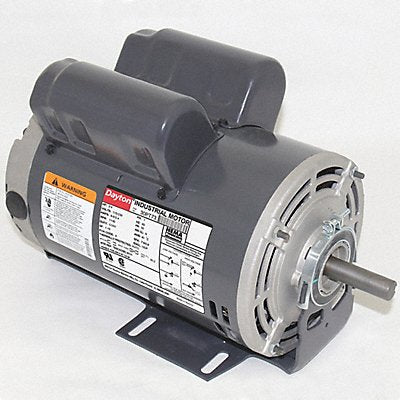

GP Motor 3/4 HP 1 140 RPM 115/230V AC 56
Manufacturer: DAYTON
Jahnda Part Number: 14F57A
EA
Description
General Purpose Motor Single Phase Motor Design Capacitor-Start/Run 3/4 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 115/230V AC Full Load Amps 6.6/3.4 A 56 Frame Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Motor Thermal Protection Auto Duty Cycle Continuous Ins. Class B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Cradle Base Motor Mounting Position Horizontal Inverter Rated No Motor Shaft Design Keyed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 37.36 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101602 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | Mexico |
