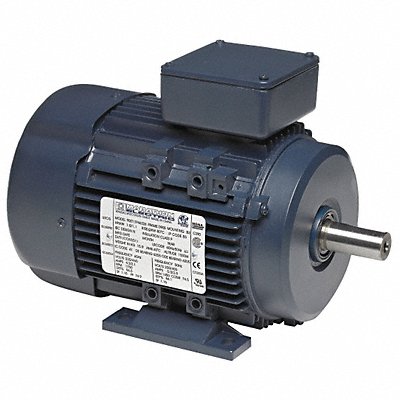

GP Motor 1/2 HP 3 410 RPM 575V AC 71
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 02B70K
EA
Description
General Purpose Motor Three Phase Motor Design 3-Phase 1/2 HP Nameplate RPM 3 410 No of Speeds 1 Voltage 575V AC Full Load Amps 0.66 A 71 Frame Usable @ 208V No Usable @ 200V No Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins. Class F Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 12.0 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101612 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | China |
