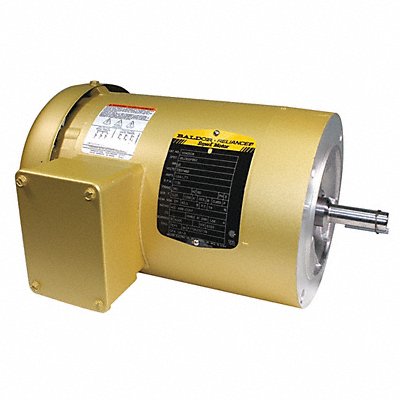

GP Motor 1/2 HP 1 735 RPM 230/460V 56C
Manufacturer: BALDOR ELECTRIC
Jahnda Part Number: 56J45A
EA
Description
General Purpose Motor Three Phase Motor Design 3-Phase 1/2 HP Nameplate RPM 1 735 No of Speeds 1 Voltage 230/460V AC Full Load Amps 1.54/0.77 A 56C Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Hz Motor Service Factor 1.25 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Face Motor Mounting Position Horizontal
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 30.35 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101612 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | United States |
