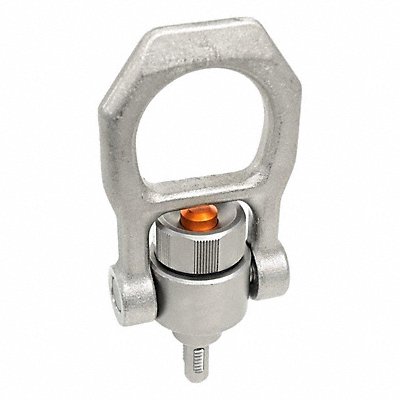

GN1135-M8-12-NI THREADED LIFTING PIN
Manufacturer: JW WINCO
Jahnda Part Number: 72X40P
EA
Description
Quick-Release Hoist Ring Movement Type Pivot Swivel Material Stainless Steel Mount Type Quick-Release Thread Size M8 Operation Lifting Pivot Angle 180 Degrees Swivel Angle 360 Degrees Usable Thread Length 8 mm Bail Inside Length 42.5 mm Bail Inside Width 46 mm Bail Thickness 11 mm Overall Length 123 3/4 mm Overall Width 68 mm Minimum Installation Torque 2 N-m Minimum Operating Temperature -4 Degrees F Maximum Operating Temperature 482 Degrees F Color Orange
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.35 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Germany |
