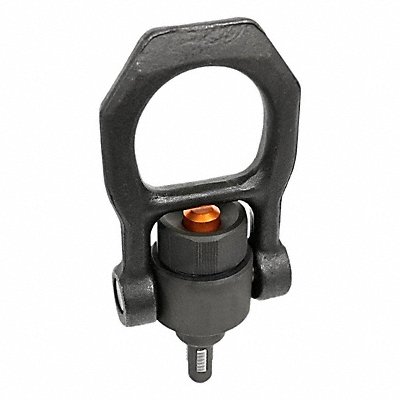

GN1135-M20-22-ST THREADED LIFTING PIN
Manufacturer: JW WINCO
Jahnda Part Number: 68X40P
EA
Description
Quick-Release Hoist Ring Movement Type Pivot Swivel Material Steel Mount Type Quick-Release Thread Size M20 Operation Lifting Pivot Angle 180 Degrees Swivel Angle 360 Degrees Usable Thread Length 17 mm Bail Inside Length 55.6 mm Bail Inside Width 70 mm Bail Thickness 15.5 mm Overall Length 167 1/2 mm Overall Width 102 mm Minimum Installation Torque 3 N-m Finish Black Oxide Minimum Operating Temperature -4 Degrees F Maximum Operating Temperature 482 Degrees F Color Orange
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 4.35 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Germany |
