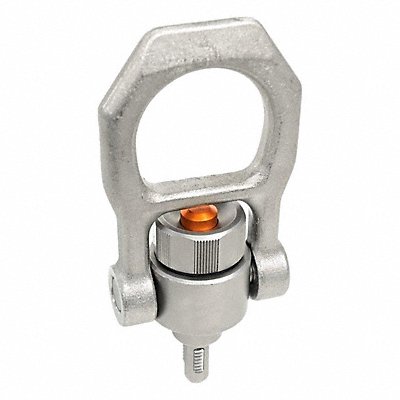

GN1135-M12-17-NI THREADED LIFTING PIN
Manufacturer: JW WINCO
Jahnda Part Number: 74X40P
EA
Description
Quick-Release Hoist Ring Movement Type Pivot Swivel Material Stainless Steel Mount Type Quick-Release Thread Size M12 Operation Lifting Pivot Angle 180 Degrees Swivel Angle 360 Degrees Usable Thread Length 12 mm Bail Inside Length 42.5 mm Bail Inside Width 46 mm Bail Thickness 11 mm Overall Length 123 3/4 mm Overall Width 68 mm Minimum Installation Torque 2 N-m Minimum Operating Temperature -4 Degrees F Maximum Operating Temperature 482 Degrees F Color Orange
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.37 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Germany |
