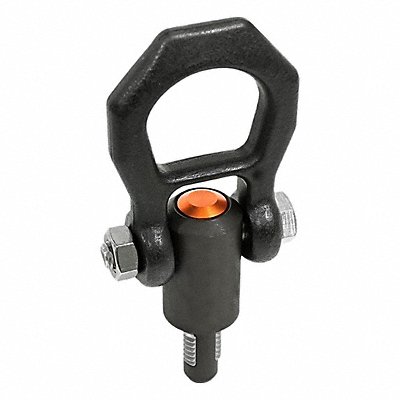

GN1133-M20-22-ST THREADED LIFTING PIN
Manufacturer: JW WINCO
Jahnda Part Number: 52X40P
EA
Description
Quick-Release Hoist Ring Movement Type Pivot Material Steel Mount Type Quick-Release Thread Size M20 Operation Lifting Pivot Angle 180 Degrees Usable Thread Length 17 mm Bail Inside Length 32.6 mm Bail Inside Width 36 mm Bail Thickness 15 mm Overall Length 114 mm Overall Width 56 mm Finish Black Oxide Minimum Operating Temperature -4 Degrees F Maximum Operating Temperature 482 Degrees F Color Orange Standards CE Certified RoHS Compliant TUV Series GN 1133
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.34 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Germany |
