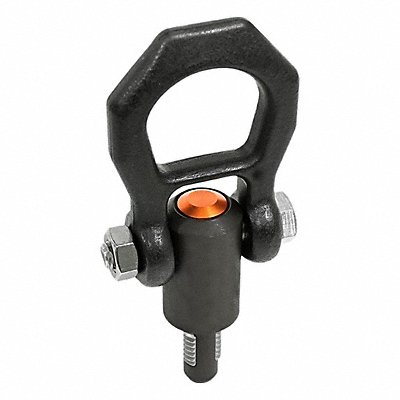

GN1133-1X8-1.063-ST THREADED LIFTING PIN
Manufacturer: JW WINCO
Jahnda Part Number: 47X40P
EA
Description
Quick-Release Hoist Ring Movement Type Pivot Material Steel Mount Type Quick-Release Thread Size 1 In.-8 Operation Lifting Pivot Angle 180 Degrees Usable Thread Length 7/8 in Bail Inside Length 2 in Bail Inside Width 2 in Bail Thickness 19/32 in Overall Length 6 in Overall Width 3 1/4 in Finish Black Oxide Minimum Operating Temperature -4 Degrees F Maximum Operating Temperature 482 Degrees F Color Orange Standards CE Certified RoHS Compliant TUV Series GN 1133
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 2.69 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Germany |
