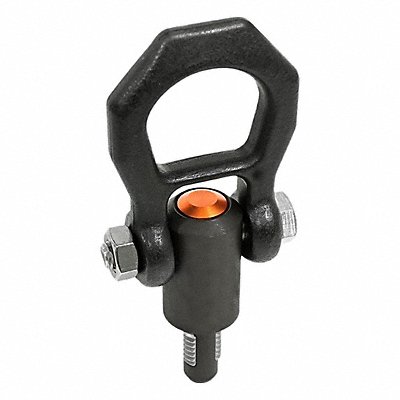

GN1133-1/2X13-0.669-ST THREADED LIFTING
Manufacturer: JW WINCO
Jahnda Part Number: 45X40P
EA
Description
Quick-Release Hoist Ring Movement Type Pivot Material Steel Mount Type Quick-Release Thread Size 1/2 In.-13 Operation Lifting Pivot Angle 180 Degrees Usable Thread Length 1/2 in Bail Inside Length 1 1/8 in Bail Inside Width 1 1/8 in Bail Thickness 3/8 in Overall Length 3 1/2 in Overall Width 1 7/8 in Finish Black Oxide Minimum Operating Temperature -4 Degrees F Maximum Operating Temperature 482 Degrees F Color Orange Standards CE Certified RoHS Compliant TUV Series GN 1133
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.52 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Germany |
