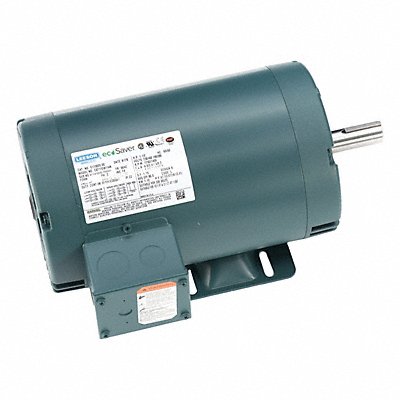

General Purpose Motor 56HZ E115825.00
Manufacturer: LESSON
Jahnda Part Number: 24R48O
EA
Description
General Purpose Motor 3-Phase Open Dripproof Motor Enclosure Design 1 1/2 HP Nameplate RPM 1 750 Frame 56HZ Voltage 230/460V 60/50 Hz Hz Three Phase Full Load Amps 2.15 A Rigid Base Motor Mounting Type Motor Thermal Protection T-Stat Ins. Class F Motor Service Factor 1.15 Ball Motor Bearings Motor Frame Material Rolled Steel Max Ambient Temp 40 Degrees C Reversible Motor Shaft Rotation Nominal Efficiency 86.5 Percent 1750 CE CSA Certified UL Listed Includes Not available
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 42.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
