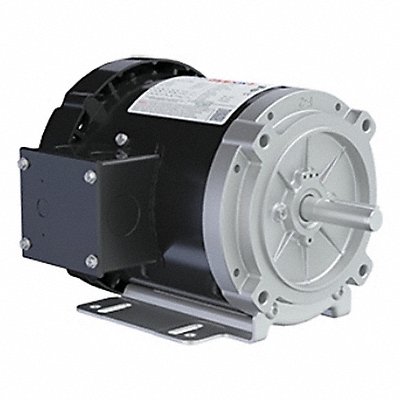

General Purpose Motor 56HC 056T34F15670
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 90Q48O
EA
Description
General Purpose Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 3/4 HP Nameplate RPM 3 450 Frame 56HC Voltage 575V 60 Hz Hz Three Phase Full Load Amps 1.6 A Universal Motor Mounting Type Motor Thermal Protection None Ins. Class F Motor Service Factor 1.15 Ball Motor Bearings Motor Frame Material Rolled Steel Max Ambient Temp 40 Degrees C Reversible Motor Shaft Rotation Nominal Efficiency 74 Percent 3450 CE CSA Certified UL Listed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 23.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
