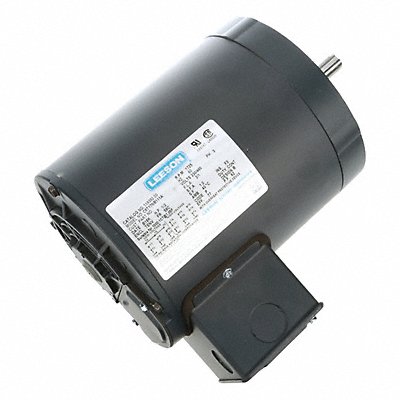

General Purpose Motor 56C 119392.00
Manufacturer: LESSON
Jahnda Part Number: 39R48O
EA
Description
General Purpose Motor 3-Phase Totally Enclosed Nonventilated Motor Enclosure Design 1/2 HP Nameplate RPM 1 725 Frame 56C Voltage 230/460V 60 Hz Hz Three Phase Full Load Amps 1.0 A Face Motor Mounting Type Motor Thermal Protection T-Stat Ins. Class F Motor Service Factor 1 Ball Motor Bearings Motor Frame Material Rolled Steel Max Ambient Temp 40 Degrees C Reversible Motor Shaft Rotation Nominal Efficiency 77 Percent 1725 CSA Certified UL Listed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 21.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
