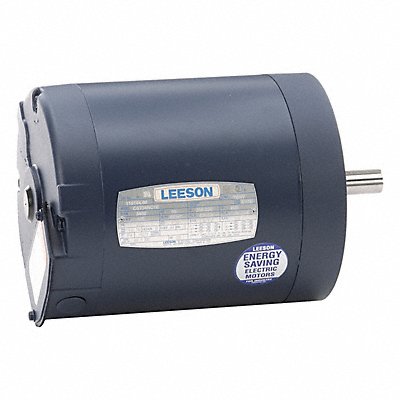

General Purpose Motor 56C 110144.00
Manufacturer: LESSON
Jahnda Part Number: 45J48O
EA
Description
General Purpose Motor 3-Phase Totally Enclosed Nonventilated Motor Enclosure Design 1/2 HP Nameplate RPM 3 450 Frame 56C Voltage 230/460V 60/50 Hz Hz Three Phase Full Load Amps 0.80 A Face Motor Mounting Type Motor Thermal Protection None Ins. Class F Motor Service Factor 1.15 Ball Motor Bearings Motor Frame Material Rolled Steel Max Ambient Temp 40 Degrees C Reversible Motor Shaft Rotation Nominal Efficiency 70 Percent 3450 CE CSA Certified UL Listed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 24.1 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
