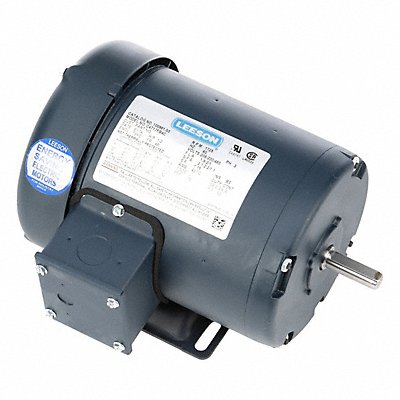

General Purpose Motor 48 100961.00
Manufacturer: LESSON
Jahnda Part Number: 18Q48O
EA
Description
General Purpose Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 1/2 HP Nameplate RPM 1 725 Frame 48 Voltage 230/460V 60 Hz Hz Three Phase Full Load Amps 2.0 A Rigid Base Motor Mounting Type Motor Thermal Protection None Ins. Class B Motor Service Factor 1.15 Ball Motor Bearings Motor Frame Material Rolled Steel Max Ambient Temp 40 Degrees C Reversible Motor Shaft Rotation Nominal Efficiency 73 Percent 1725 CSA Certified UL Listed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 17.7 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
