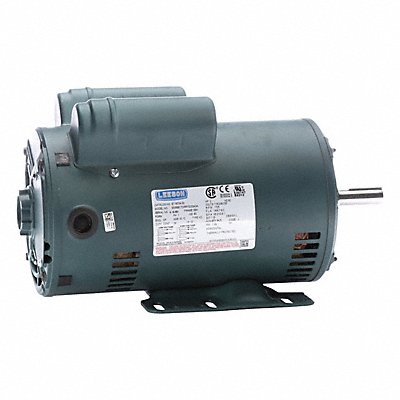

General Purpose Motor 230V Rigid Base E116704.00
Manufacturer: LESSON
Jahnda Part Number: 27R48O
EA
Description
General Purpose Motor Single Phase Motor Design Capacitor-Start 2 hp HP Nameplate RPM 1725 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 16/8.7-8.0 A 56H Frame Usable @ 208V Usable at 208V Usable @ 200V Not Usable at 200V Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection Manual Duty Cycle Continuous Ins. Class F NEMA Design L Motor Enclosure Design Open Drip Proof Motor Shaft Rotation CCWSE Motor Mounting Type Rigid Base
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 45.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
