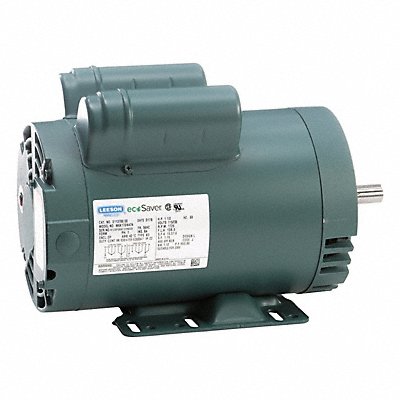

General Purpose Motor 230V Rigid Base E113700.00
Manufacturer: LESSON
Jahnda Part Number: 23R48O
EA
Description
General Purpose Motor Single Phase Motor Design Capacitor-Start 1 1/2 hp HP Nameplate RPM 1725 No of Speeds 1 Voltage 115/230V AC Full Load Amps 6.47 A 56HC Frame Usable @ 208V Not Usable at 208V Usable @ 200V Not Usable at 200V Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection Manual Duty Cycle Continuous Ins. Class B NEMA Design L Motor Enclosure Design Open Drip Proof Motor Shaft Rotation CCWSE Motor Mounting Type Rigid Base
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 41.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
