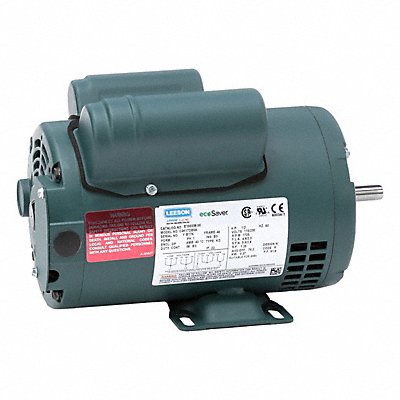

General Purpose Motor 230V Rigid Base E100338.00
Manufacturer: LESSON
Jahnda Part Number: 18R48O
EA
Description
General Purpose Motor Single Phase Motor Design Capacitor-Start 1/2 hp HP Nameplate RPM 1725 No of Speeds 1 Voltage 115/230V AC Full Load Amps 2.3 A 48 Frame Usable @ 208V Not Usable at 208V Usable @ 200V Not Usable at 200V Hz 60 Hz Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class B NEMA Design N Motor Enclosure Design Open Drip Proof Motor Shaft Rotation CCWSE Motor Mounting Type Rigid Base
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 22.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
