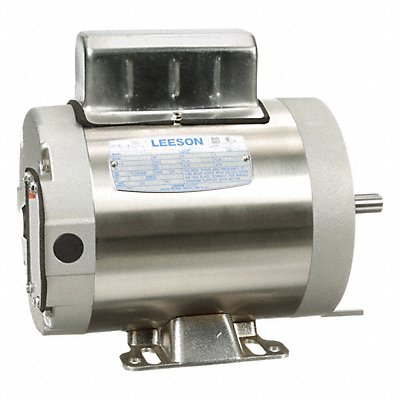

General Purpose Motor 230V Rigid Base 119217.00
Manufacturer: LESSON
Jahnda Part Number: 09O48O
EA
Description
General Purpose Motor Single Phase Motor Design Capacitor-Start 1 hp HP Nameplate RPM 1725 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 12.8/6.4 A 56C Frame Usable @ 208V Usable at 208V Usable @ 200V Not Usable at 200V Hz 60 Hz Motor Service Factor 1 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Intermittent Ins. Class B NEMA Design N Motor Enclosure Design Totally Enclosed Non-Ventilated Motor Shaft Rotation CCWSE
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 29.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
