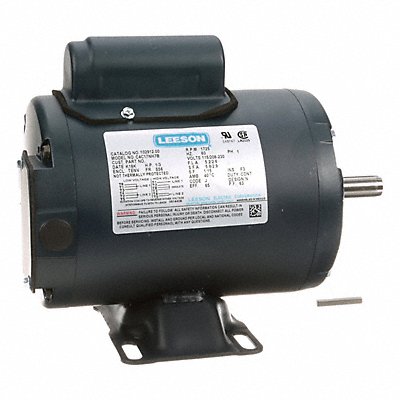

General Purpose Motor 230V Rigid Base 102912.00
Manufacturer: LESSON
Jahnda Part Number: 29Q48O
EA
Description
General Purpose Motor Single Phase Motor Design Capacitor-Start 1/3 hp HP Nameplate RPM 1725 No of Speeds 1 Voltage 115/230V AC Full Load Amps 2.6 A 56 Frame Usable @ 208V Usable at 208V Usable @ 200V Not Usable at 200V Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design N Motor Enclosure Design Totally Enclosed Non-Ventilated Motor Shaft Rotation CCWSE Motor Mounting Type Rigid Base
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 21.85 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
